Core Board

Key Specification

Parameter	Description
CPU	A210 RISC-V 4×C920@2.3GHz+4×C908@1.9GHz
GPU	Vulkan 1.1/1.2 OpenCL 1.1/1.2/2.0 OpenGL ES 1.1/2.0/3.0/3.1/3.2
NPU	12 TOPS@INT8
PCIE&SATA	1x PCIE X4 1x PCIE X2 +1x PCIE X1 1x PCIEX2+2x SATA 2x PCIEX1 + 2x SATA
Memory	4GB/8GB/16GB 2XLPDDR4x, up to 4266Mbps
Storage	eMMC 5.1/5.0 NOR/NAND Flash SD 3.0
Ethernet	2x 10/100/1000M Gigabit Ethernet ports
Video	1x HDMI 2.0 1x 4-lane MIPI DSI 1x 2-lane DP or 1x 4-lane DP (USB limitation) 1x 2-lane DP/EDP or 1x 4-lane DP/EDP (USB limitation)
Camera	2x 4-lane or 4x2-lane or 1x 4-lane+2x 2-lane MIPI CSI
Audio	1x 8ch I2S/PCM 3x 2ch I2S/PCM 1x PDM 1x TDM/PCM
USB	1x USB3.1, 2x USB2.0
Others	2x SPI, 1x QSPI, 7x I2C, 10x UART, 3x 5ch PWM, 2x 1ch ADC
OS	Linux Debian
Power input	5V/5A minimum
Operating temperature	-20°C~60°C
Size	59.66mm×69.94mm

Dimensions and Interfaces

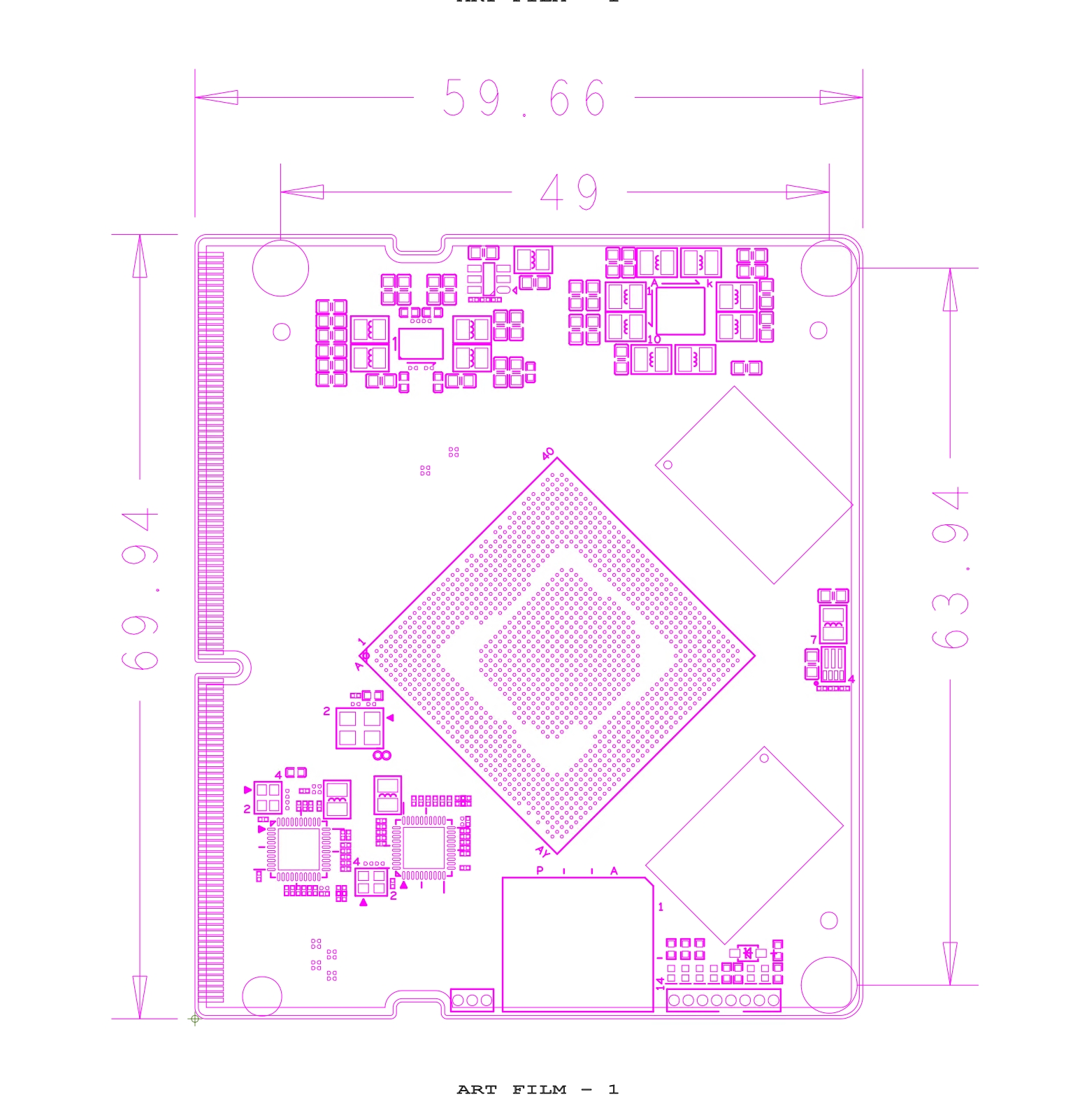

Size and Structure

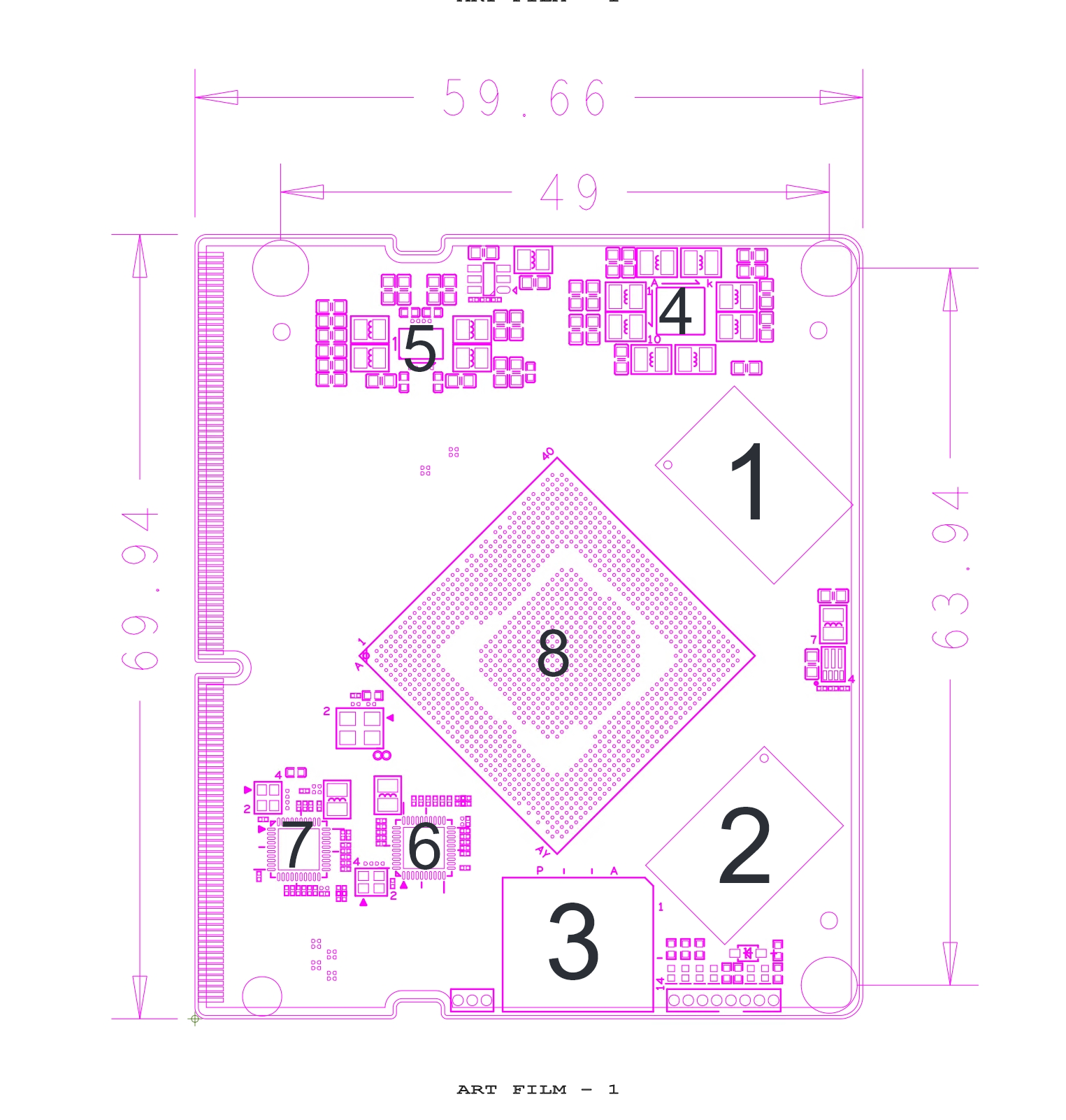

Function Description

NO.	Description
1&2	2XLPDDR4X
3	eMMC
4&5	PMIC
6&7	2XEHT PHY
8	SOC-A210

SODIMM Finger Definition

Pin Number	Pin Name	Pin Number	Pin Name
1	GND	2	GND
3	GND	4	GND
5	GND	6	GND
7	GND	8	GND
9	GND	10	GND
11	VDD_IN	12	VDD_IN
13	VDD_IN	14	VDD_IN
15	VDD_IN	16	VDD_IN
17	VDD_IN	18	VDD_IN
19	VDD_IN	20	VDD_IN
21	———	22	———
23	GPIO3_4/QSPI1_CSN1/UART9_RXD/UART9_IR_IN/I2S3_SDI3/PWM2_CH0	24	RST_IN
25	GPIO2_18/I2S3_SCLK/SPI1_CS0/I2C4_SDA/PWM_CH3/UART5_TXD/UART5_IR_OUT	26	GPIO3_2/QSPI1_SCLK/UART8_TXD/UART8_IR_OUT/I2S3_SDI1/PWM1_CH0
27	GPIO2_19/I2S3_WS/SPI1_CS1/PWM_CH5/UART5_RXD/UART5_IR_IN	28	GPIO3_0/I2C7_SCL/UART9_CTSN/PWM1_CH4/CAN2_RX/QSPI1_D1_MISO/I2S3_WS/SENSOR_VCLK0
29	GPIO2_17/I2S3_MCLK/SPI1_SCLK/I2C4_SCL/UART8_RXD/I2C7_SDA	30	GPIO3_1/I2C7_SDA/UART9_RTSN/PWM1_CH5/CAN2_TX/QSPI1_D2_WP/I2S3_SDI0/SENSOR_VCLK1
31	GPIO2_21/I2S3_SDI0/SPI1_D0_MOSI/I2C3_SCL/PWM_CH3/UART8_CTSN	32	GPIO3_3/QSPI1_CSN0/UART8_RXD/UART8_IR_IN/I2S3_SDI2/PWM1_CH1
33	GPIO2_22/I2S3_SDO0/SPI1_D1_MISO/I2C3_SDA/PWM_CH4/UART8_RTSN	34	GPIO3_9/UART4_CTSN/I2S1_SDI/I2C7_SMB_ALERT_OUT0/UART5_CTSN/DPTX_HPDIN/PWM2_CH5
35	GND	36	GPIO3_10/UART4_RTSN/I2S1_SDO/I2C7_SMB_ALERT_OUT1/UART5_RTSN/USB31_HUB_OVERCURR
37	USB2_0_DN	38	GPIO2_0/UART4_TXD/UART4_IR_OUT/PWM2_CH0/I2C3_SCL(uart debug)
39	USB2_0_DP	40	GPIO2_1/UART4_RXD/UART4_IR_IN/PWM2_CH1/I2C3_SDA(uart debug)
41	GND	42	GPIO2_2/UART5_TXD/UART5_IR_OUT/PWM2_CH0/I2C5_SCL/I2S1_SCLK
43	USB2_1_DN	44	GPIO2_3/UART5_RXD/UART5_IR_IN/PWM2_CH1/I2C5_SDA/I2S1_WS
45	USB2_1_DP	46	GPIO2_4/UART6_TXD/UART6_IR_OUT/PWM2_CH2/I2C6_SCL/I2S1_SDI
47	GND	48	GND
49	USB2_2_DN	50	GPIO2_5/UART6_RXD/UART6_IR_IN/PWM2_CH3/I2C6_SDA/I2S1_SDO
51	USB2_2_DP	52	GPIO2_6/UART7_TXD/UART7_IR_OUT/PWM2_CH4/SENSOR_VCLK0/I2C4_SCL/I2S1_MCLK
53	GND	54	GPIO2_7/UART7_RXD/UART7_IR_IN/PWM2_CH5/SENSOR_VCLK1/I2C4_SDA
55	USB3_DPTXRX_TXRX1_N	56	GPIO2_8/I2S2_MCLK/SPI1_SCLK/UART6_CTSN/I2C6_SCL/PWM2_CH4
57	USB3_DPTXRX_TXRX1_P	58	GPIO2_9/I2S2_SCLK/SPI1_CSN0/UART6_RTSN/I2C6_SDA/PWM2_CH5
59	GND	60	GPIO2_10/I2S2_WS/PWM1_CH0/SPI1_CSN1/UART9_TXD/I2C7_SCL
61	USB3_DPTX_TX0_P	62	GPIO2_11/I2S2_SDI/PWM1_CH1/SPI1_D0_MOSI/UART9_RXD/I2C7_SDA
63	USB3_DPTX_TX0_N	64	GPIO2_12/I2S2_SDO/PWM1_CH2/SPI1_D1_MISO/UART8_TXD/I2C7_SCL
65	GND	66	GPIO2_25/I2C3_SDA/UART5_RTSN/HDMI_CEC/QSPI1_D3_HOLD/PWM2_CH2
67	USB3_DPTXRX_TXRX2_N	68	GPIO2_30/I2C6_SCL/UART8_CTSN/PWM1_CH2/HDMI_SCL/QSPI1_CSN1/I2S3_MCLK
69	USB3_DPTXRX_TXRX2_P	70	GPIO2_31/I2C6_SDA/UART8_RTSN/PWM1_CH3/HDMI_SDA/QSPI1_D0_MOSI/I2S3_SCLK
71	GND	72	GND
73	USB3_DPTX_TX3_P	74	GPIO2_28/I2C5_SCL/UART7_CTSN/PWM1_CH0/QSPI1_SCLK
75	USB3_DPTX_TX3_N	76	GPIO2_29/I2C5_SDA/UART7_RTSN/PWM1_CH1/QSPI1_CSN0
77	GND	78	——
79	HDMI_TMDSDATAN0	80	GPIO2_27/I2C4_SDA/UART6_RTSN
81	HDMI_TMDSDATAP0	82	GPIO2_16/I2S3_SDO1
83	GND	84	GPIO2_26/I2C4_SCL/UART6_CTSN
85	HDMI_TMDSDATAN1	86	HDMI_HPD
87	HDMI_TMDSDATAP1	88	GND
89	GND	90	DPTX_AUX_P
91	HDMI_TMDSDATAN2	92	DPTX_AUX_N
93	HDMI_TMDSDATAP2	94	GND
95	GND	96	HDMI_TMDSCLKN
97	MIPI_DSI0_DATAP1	98	HDMI_TMDSCLKP
99	MIPI_DSI0_DATAN1	100	GND
101	GND	102	MIPI_DSI0_DATAP3
103	MIPI_DSI0_CLKP	104	MIPI_DSI0_DATAN3
105	MIPI_DSI0_CLKN	106	GND
107	GND	108	MIPI_DSI0_DATAP2
109	MIPI_DSI0_DATAP0	110	MIPI_DSI0_DATAN2
111	MIPI_DSI0_DATAN0	112	GND
113	GND	114	MIPI_CSI1_A_CLKN
115	MIPI_CSI1_A_DATAN1	116	MIPI_CSI1_A_CLKP
117	MIPI_CSI1_A_DATAP1	118	GND
119	GND	120	MIPI_CSI0_B_DATAN1
121	MIPI_CSI1_A_DATAN0	122	MIPI_CSI0_B_DATAP1
123	MIPI_CSI1_A_DATAP0	124	GND
125	GND	126	MIPI_CSI0_B_DATAN0
127	MIPI_CSI0_A_DATAN1	128	MIPI_CSI0_B_DATAP0
129	MIPI_CSI0_A_DATAP1	130	GND
131	GND	132	MIPI_CSI0_A_CLKP
133	MIPI_CSI0_A_DATAN0	134	MIPI_CSI0_A_CLKN
135	MIPI_CSI0_A_DATAP0	136	GND
137	GND	138	GND
139	AOGPIO1_9	140	AOGPIO1_2/DVS_CLK
141	AOGPIO1_8/PCIe_RC_EP_SEL	142	GND
143	AOGPIO1_7	144	AOGPIO1_3/DVS_DREADY
145	AOGPIO0_31/AOUART_CTSN/DVS_INTERRUPT	146	AOGPIO1_4
147	AOGPIO1_1	148	GPIO0_17/UART0_RTSN/UART1_RXD/UART1_IR_IN/SATA_P1_CP_POD/I2S0_SDI/ZGMAC_TOD/OCD_CMD
149	AOGPIO0_28/AOI2C1_SMB_ALERT_IN	150	GND
151	GND	152	AOGPIO0_30/AOI2C1_SMB_ALERT_OUT1/PMIC_CTRL_9
153	AOGPIO0_29/AOI2C1_SMB_ALERT_OUT0	154	AOGPIO1_0/AOUART_RTSN/MCM_CHIP_ID0
155	AOGPIO0_27/AOI2C1_SMB_SUS_OUT/PWRBTN	156	AOGPIO1_6/DVS_DATA3
157	AOGPIO0_26/AOI2C1_SMB_SUS_IN	158	GPIO0_26/QSPI0_D0_MOSI/I2C1_SCL/CAN1_RX/CHIP_DBG_MOSI/PCIE_X1_PERSTN/UART0_TXD
159	GPIO0_14/UART0_TXD/UART0_IR_OUT/SATA_P1_DEVSLP/I2S0_MCLK/OCD_RESP1	160	AOGPIO1_5/DVS_DATA2
161	GND	162	AOI2C1_SDA/AOSPI_D1_MISO/AOGPIO0_9
163	GPIO0_30/PWM0_CH2/SPI0_CSN0/I2S0_WS/PCIE_X4_PERSTN/UART1_CTSN	164	AOI2C1_SCL/AOSPI_D0_MOSI/AOGPIO0_8
165	GPIO0_31/PWM0_CH3/SPI0_CSN1/QSPI0_CSN1/I2S0_SDI/PCIE_X4_WAKEN/UART1_RTSN	166	GPIO0_27/QSPI0_D1_MISO/I2C1_SDA/CAN1_TX/CHIP_DBG_MISO/PCIE_X1_WAKEN/UART0_RXD/UART0_IR_IN
167	GPIO0_29/PWM0_CH1/SPI0_SCLK/UART1_IR_IN/I2S0_SCLK/PCIE_X4_CLKREQN/UART1_RXD	168	GND
169	GPIO0_28/PWM0_CH0/SPI0_D0_MOSI/UART1_IR_OUT/I2S0_MCLK/PCIE_X4_BTN_RSTN/UART1_TXD	170	BOOT_SEL1/AOGPIO0_2
171	GPIO1_1/PWM0_CH5/UART2_TXD/UART2_IR_OUT/I2C2_SCL/SATA_P1_DEVSLP/SPI0_D1_MISO/SDIO_DETN	172	RST_OUT
173	GND	174	GPIO0_15/UART0_RXD/UART0_IR_IN/SATA_P1_MP_SWITCH/I2S0_SCLK/OCD_RESP2_MASTER_BYPASS
175	GPIO0_23/QSPI0_D3_HOLD/I2C2_SDA/SATA_P0_ACT_LED/PWM0_CH4	176	GPIO0_25/QSPI0_CSN0/I2C0_SDA/CAN0_TX/CHIP_DBG_CSN/PCIE_X1_CLKREQN/UART0_RTSN
177	GPIO0_18/QSPI0_SCLK/GMAC0_PHY_INT/SDIO_WPRTN/SATA_P1_ACT_LED/I2S0_SDO	178	GPIO1_0/PWM0_CH4/UART2_RXD/UART2_IR_IN/I2S0_SDO/SDIO_DETN/GMAC1_PHY_INT
179	GPIO0_21/QSPI0_D1_MISO/UART3_RXD/UART3_IR_IN/TDM_WSCLK/SATA_P0_CP_DET/ZGMAC_TXER/PWM0_CH2	180	GPIO1_16/GMAC0_EPHY_CLK/SDIO_WPRTN/OCD_CLK
181	GPIO0_22/QSPI0_D2_WP/I2C2_SCL/TDM_DAT/SATA_P0_CP_POD/PWM0_CH3	182	GPIO0_16/UART0_CTSN/UART1_TXD/UART1_IR_OUT/SATA_P1_CP_DET/I2S0_WS/ZGMAC_ONE_PPS/OCD_RESP3
183	GPIO0_20/QSPI0_D0_MOSI/UART3_TXD/UART3_IR_OUT/TDM_BCLK/SATA_P0_MP_SWITCH/ZGMAC_RXER/PWM0_CH1	184	BOOT_SEL0/AOGPIO0_1
185	GPIO0_19/QSPI0_CSN0/GMAC1_PHY_INT/SATA_P0_DEVSLP	186	GPIO0_24/QSPI0_SCLK/I2C0_SCL/CAN0_RX/CHIP_DBG_SCLK/PCIE_X1_BTN_RSTN/UART0_CTSN
187	GND	188	GND
189	PHY0_MDI0+	190	GND
191	PHY0_MDI0-	192	ONKEY(PMIC)
193	GND	194	ADC_VIN_CH0
195	PHY0_MDI1+	196	ADC_VIN_CH1
197	PHY0_MDI1-	198	GND
199	GND	200	BOOT_SEL2/AOGPIO0_23
201	PHY0_MDI2+	202	PHY0_LED1/CFG_LDO0
203	PHY0_MDI2-	204	PHY0_LED2/CFG_LDO1
205	GND	206	PHY1_LED1/CFG_LDO0
207	PHY0_MDI3+	208	PHY1_LED2/CFG_LDO1
209	PHY0_MDI3-	210	GND
211	GND	212	PHY1_MDI0+
213	PCIE_SATA_0_RX0_P	214	PHY1_MDI0-
215	PCIE_SATA_0_RX0_N	216	GND
217	GND	218	PHY1_MDI1+
219	PCIE_SATA_0_RX1_P	220	PHY1_MDI1-
221	PCIE_SATA_0_RX1_N	222	GND
223	GND	224	PHY1_MDI2+
225	PCIE_SATA_1_RX2_P	226	PHY1_MDI2-
227	PCIE_SATA_1_RX2_N	228	GND
229	GND	230	PHY1_MDI3+
231	PCIE_SATA_1_RX3_P	232	PHY1_MDI3-
233	PCIE_SATA_1_RX3_N	234	GND
235	GND	236	PCIE_SATA_0_REFCLK_P
237	PCIE_SATA_1_TX3_N	238	PCIE_SATA_0_REFCLK_N
239	PCIE_SATA_1_TX3_P	240	GND
241	GND	242	PCIE_SATA_1_REFCLK_P
243	PCIE_SATA_1_TX2_N	244	PCIE_SATA_1_REFCLK_N
245	PCIE_SATA_1_TX2_P	246	GND
247	GND	248	SDIO0_CMD/GPIO4_1
249	PCIE_SATA_0_TX1_N	250	SDIO0_DAT3/GPIO4_5
251	PCIE_SATA_0_TX1_P	252	SDIO0_DAT1/GPIO4_3
253	GND	254	SDIO0_DAT0/GPIO4_2
255	PCIE_SATA_0_TX0_N	256	SDIO0_DAT2/GPIO4_4
257	PCIE_SATA_0_TX0_P	258	SDIO0_CLK/GPIO4_0
259	GND	260	GND
